Sequoia
Key Features:
-
Durable Construction: Built with high-quality, interlocking solid wood logs for longevity and strength.
-

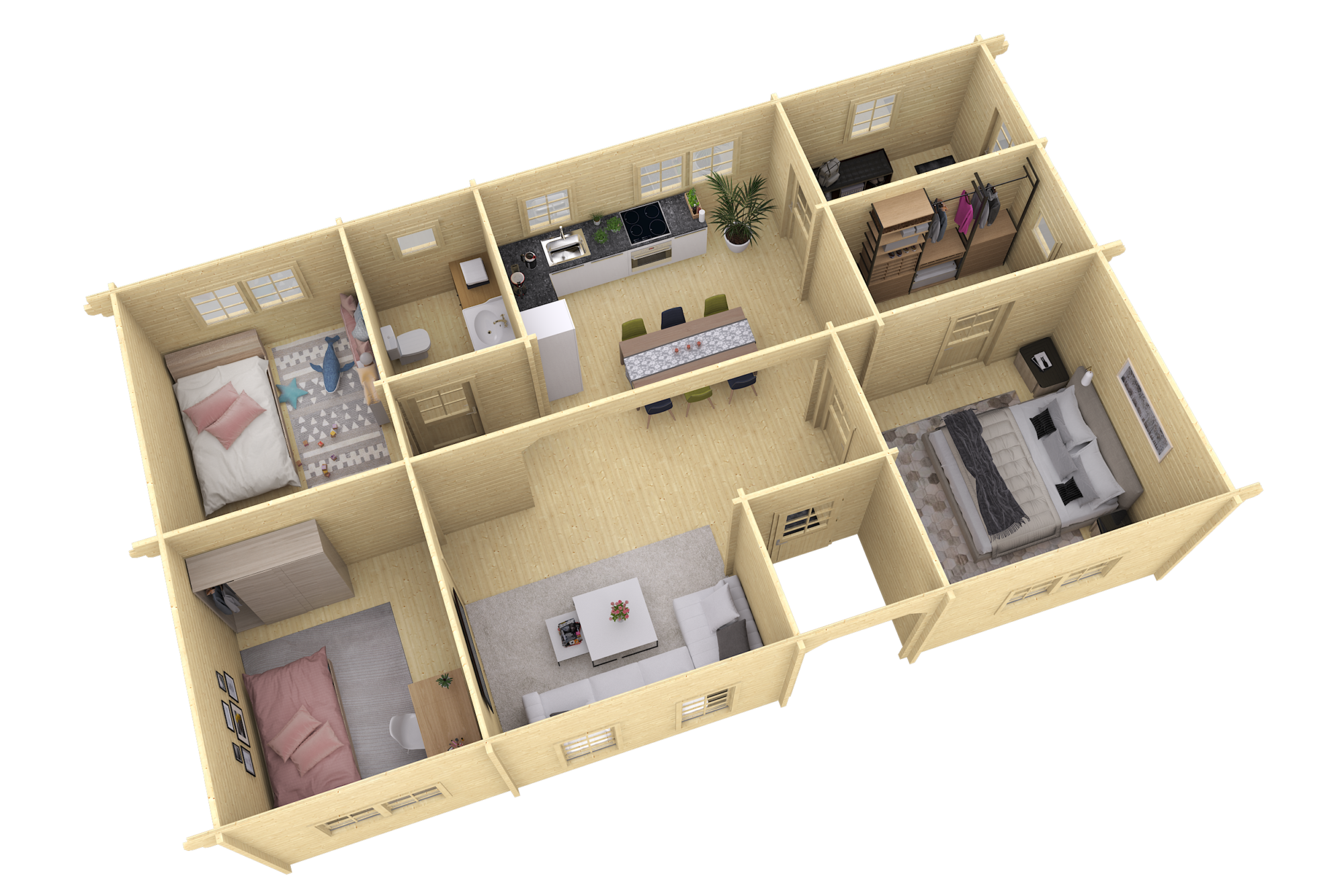

Spacious Interior: The 3 bedroom 2 bathroom home offers an efficient use of space.
-
Natural Aesthetics: The timeless log design complements various landscapes and property styles.
-
DIY-Friendly: Comes with pre-cut and numbered logs, ensuring a straightforward assembly process.
960 Square Feet
3
2
288″x480″
2165
2 3/4″
3/4″
2/12 -9.5D
89″/137″

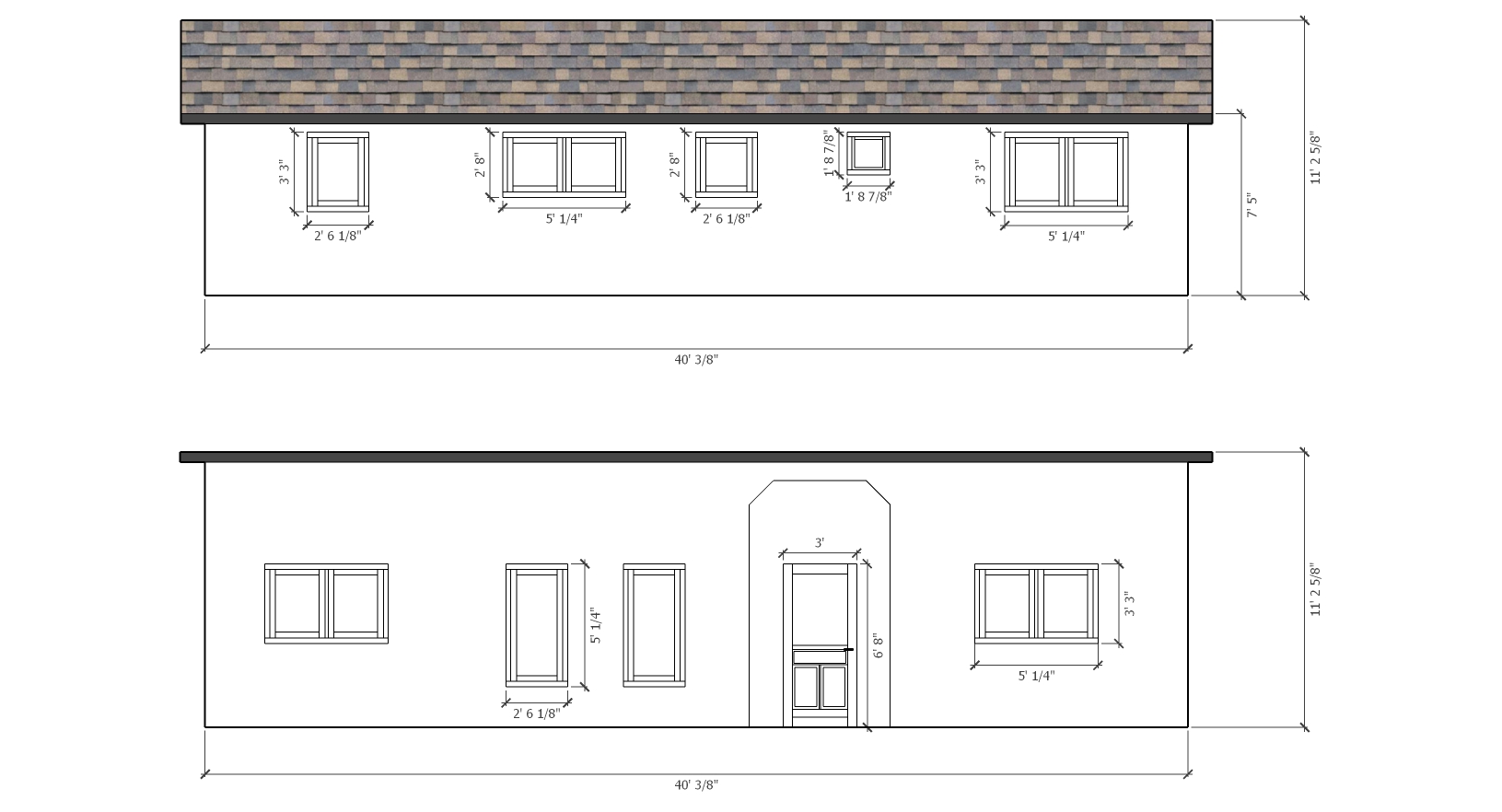

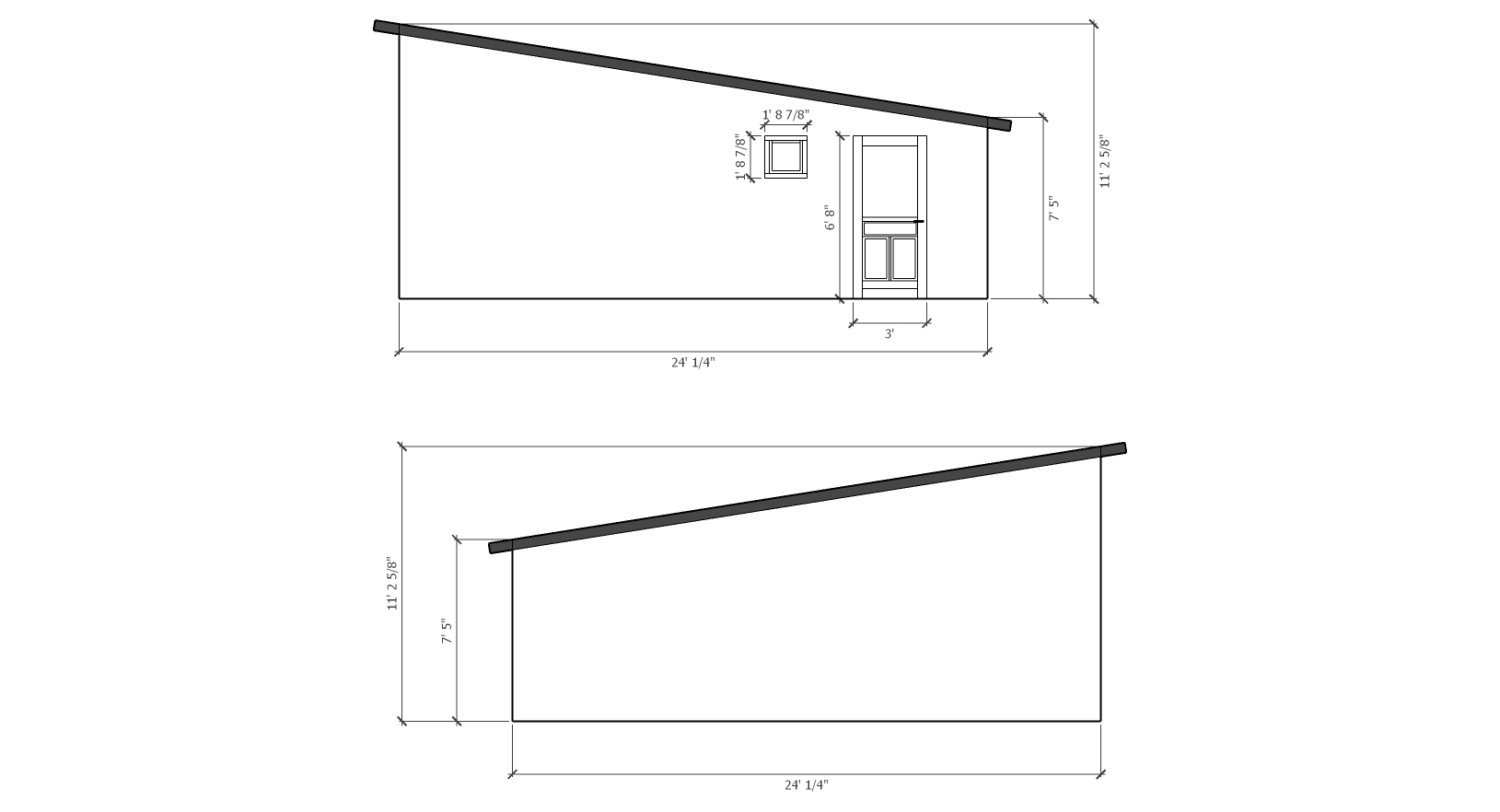

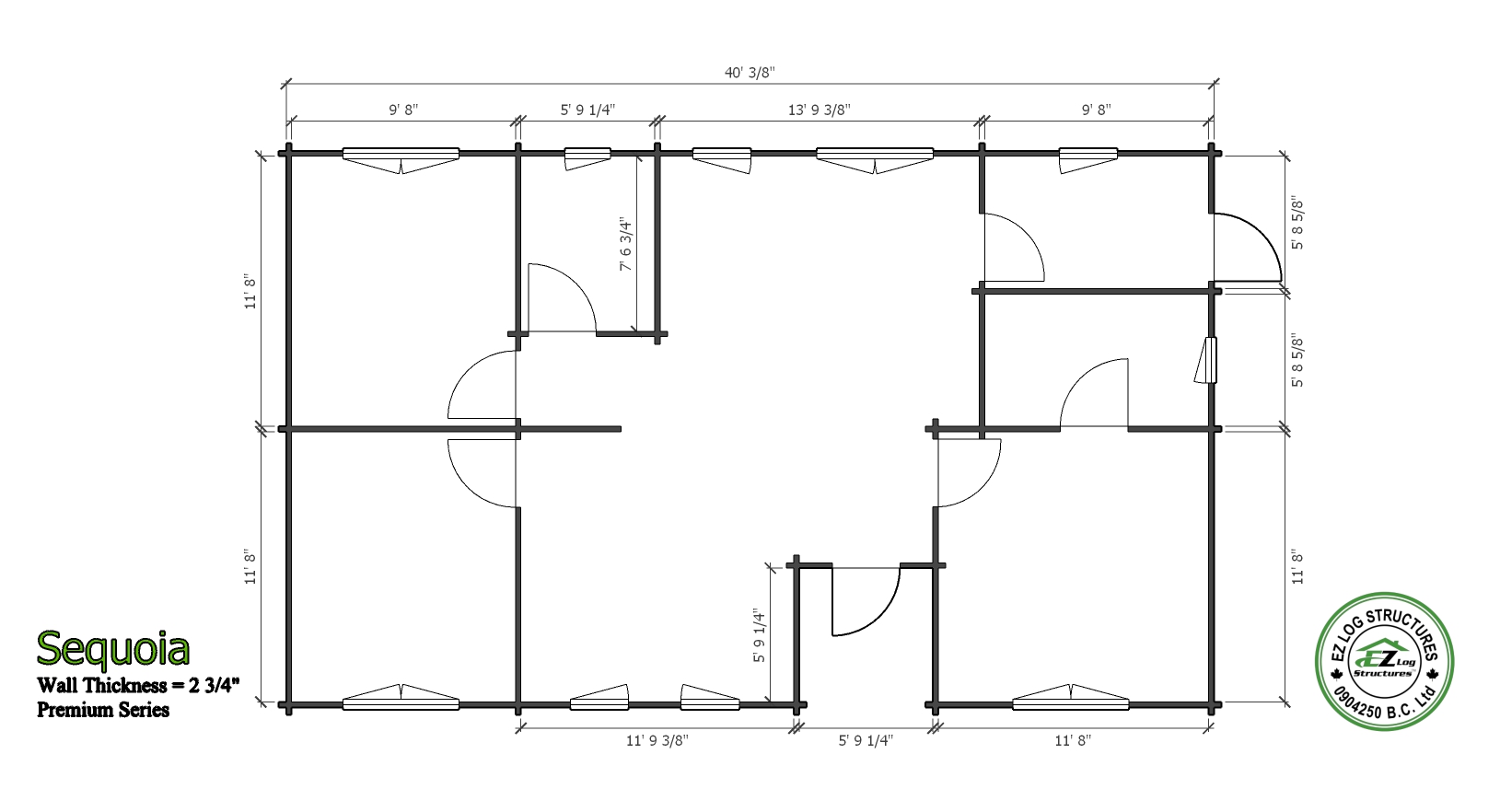

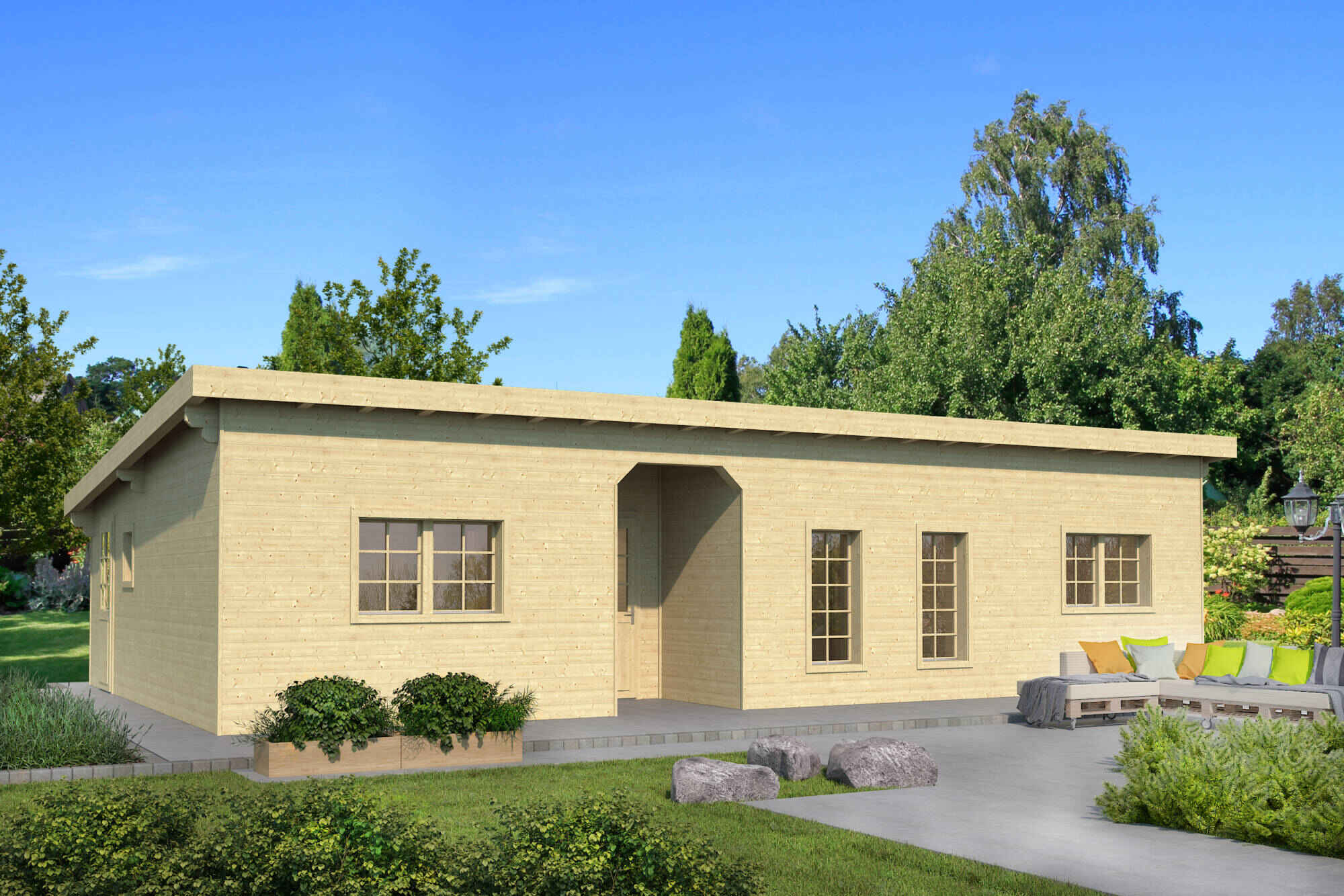

Sequoia has a modern flat sloped roof design with a footprint is 24′ x 40′ (960 sq’) with 3 bedrooms & 2 bath home. The back wall height is 89″ with a front wall height of 137″ fully vaulted/cathedral ceiling throughout which offers a very open living space
- ready to assemble on a concrete slab or wood foundation
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- roof slope 2/12 (9.5 degree)
- back wall height 89″ (2260mm)
- front wall height 137″ (3479mm)
- vaulted, cathedral ceilings
- pre-cut, 4″x 8″ (100mm x 200mm) glulam roof purlins, beams, spaced 22″ (558mm) or less
- pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
- pre-cut, numbered fascia boards
- 2165 total sq’ of wall area
- 1317 sq’ of exterior wall surface
- 231 lineal’ per row
- 1104 sq’ roof area (103 sq’ meters)
- 6 interior doors 32″x 80″ (812mm x 2040mm)
- 2 single wide wood windows 21″x 21″ (530mm x 530mm)
- 1 single wide wood window 30″x 32″ (765mm x 812mm)
- 1 single wide wood window 30″x 39″ (765mm x 990mm)
- 2 single wide wood windows 30″x 60″ (765mm x 1530mm)
- 1 double wide wood window 60″x 32” (1530mm x 812mm)
- 3 double wide wood windows 60″x 39″ (1530mm x 990mm)
- 2 exterior door 36″x 80″ (990mm x 2040mm) 1/2 glass tempered
- hardware for doors & windows
- 2 spare wall logs/spare roof boards
- 2,300 – 8″ log screws to connect each row, gable components, purlins
- 15 rolls 107 sq’ (10 sq meters) roofing underlay (NEW 2026)
- packaged/wrapped for sequence of assembly
- FREE SHIPPING

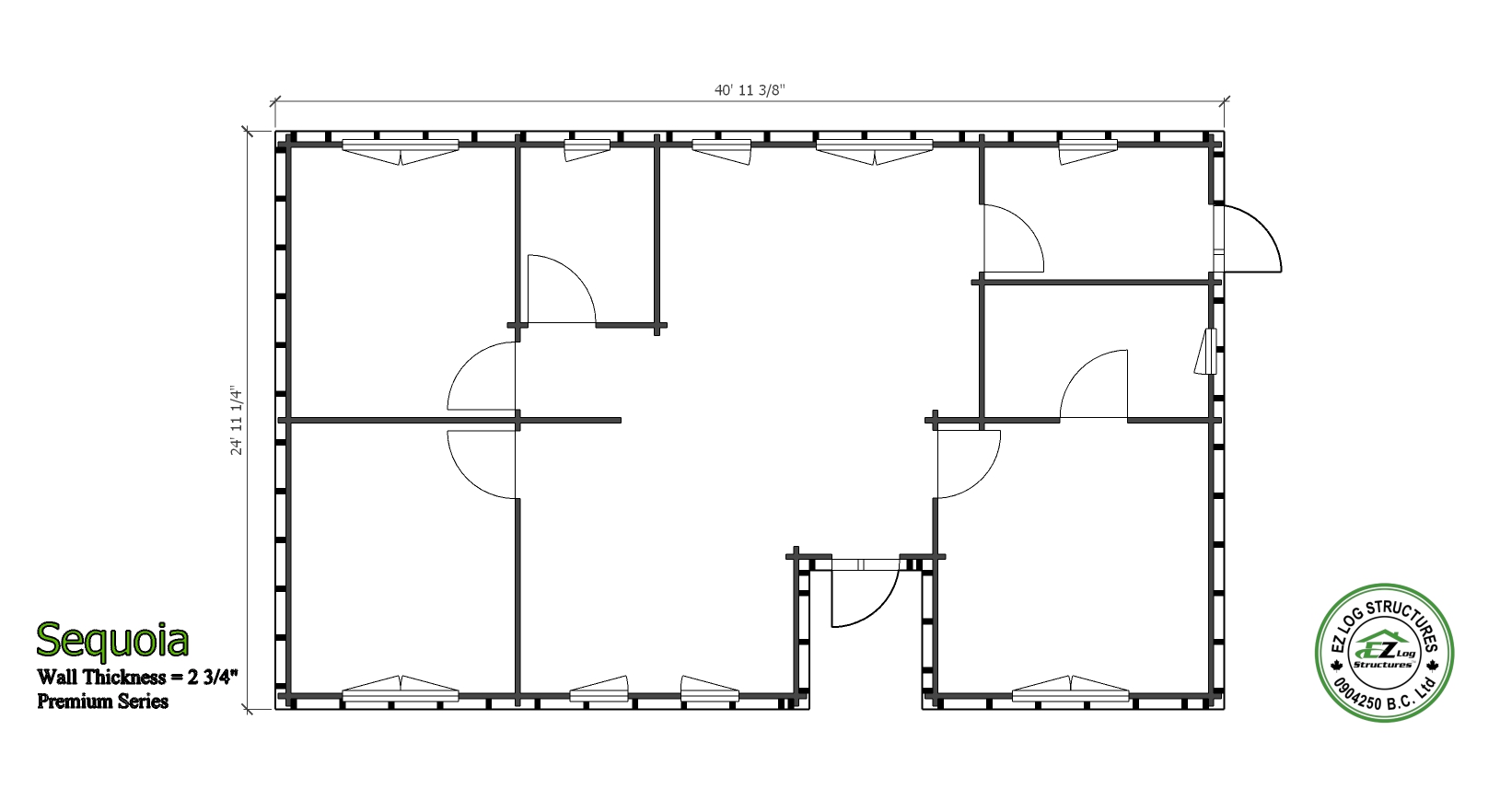

- FOUNDATION SIZE DRAWING
- STAMPED STRUCTURAL ENGINEERING
NOTE: Kits include residential grade, double glazed wood windows & doors. Rough openings can be created to accommodate locally purchased windows & doors
Siding Options
(Click here for more information on siding options)
Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims
Option 1) Add 10% for Max semi D-Log wood siding 3/4″ x 5-1/8″ (18mm x 130mm)
Option 2) Add 12% for Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm)
Option 3) Add 22% for Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
Window Options
(Click here for more information on windows)
Option 1) Upgrade all wood windows to triple glazed/Low E/Argon gas filled (21 sash)
Add – $ 1,904.00 USD
Option 2) Upgrade all wood windows with our exclusive white PVC/Shutter windows with triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
