Santa Fe

$62,000.00  $50,919.00

The Santa Fe offers a harmonious blend of traditional log cabin aesthetics and modern functionality. Crafted from precision-milled, interlocking solid wood logs, this cabin is designed for easy assembly, making it an ideal choice for homeowners seeking both style and convenience.


Key Features:

  • Durable Construction: Built with high-quality, interlocking solid wood logs for longevity and strength.

  • Spacious Interior: The 3 bedroom 1 bathroom cabin offers an efficient use of space.

  • Natural Aesthetics: The timeless log design complements various landscapes and property styles.

  • DIY-Friendly: Comes with pre-cut and numbered logs, ensuring a straightforward assembly process.

Size (sq ft)

773 Square Feet

Bedrooms

3

Bathrooms

1

Volume

1529

Cabin size

472″ x 236″

Wall thickness

2 3/4″

Roof boards

3/4″

Roof pitch

3/12 – 14D

Wall height

89″

Ridge height

100″

Purchase Santa Fe Cabin
Santa Fe is a 2 or 3 bedroom home approximately 39′ x 20′.  Affordable and comfortable with plenty of windows for light and ventilation. Once the main kit has been assembled the exterior has studs applied, insulation and then covered with wood siding, composite siding, stucco, brick or even stone.  The main kit can be assembled by 3 people in 5 days
Kit includes:
  • ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • sidewall height 89″ (2260mm)
  • 3/12 roof pitch (14 degrees)
  • pre-cut, 4″x 8″ (100mm x 200mm) glulam roof purlins spaced 22″ (558mm) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1529 total sq’ of wall area
  • 924 sq’ of exterior wall surface
  • 184 lineal’ per row
  • 920 sq’ roof area (86 sq’ meters)
  • 4 interior doors 32″x 80″ (812mm x 2040mm)
  • 2 triple wide wood window 90″x 39″ (2120mm x 990mm)
  • 4 double wide wood windows 60″x 39″ (1530mm x 990mm)
  • 1 single wide wood windows 21″x 21″ (530mm x 530mm)
  • 1 exterior door with multi locking hardware 1/2 glass tempered 36″x 80″ (990mm x 2040mm)
  • 2 exterior double door 61″x 80″ (1550mm x 2040mm) full glass tempered
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 1,600 – 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
  • FREE SHIPPING

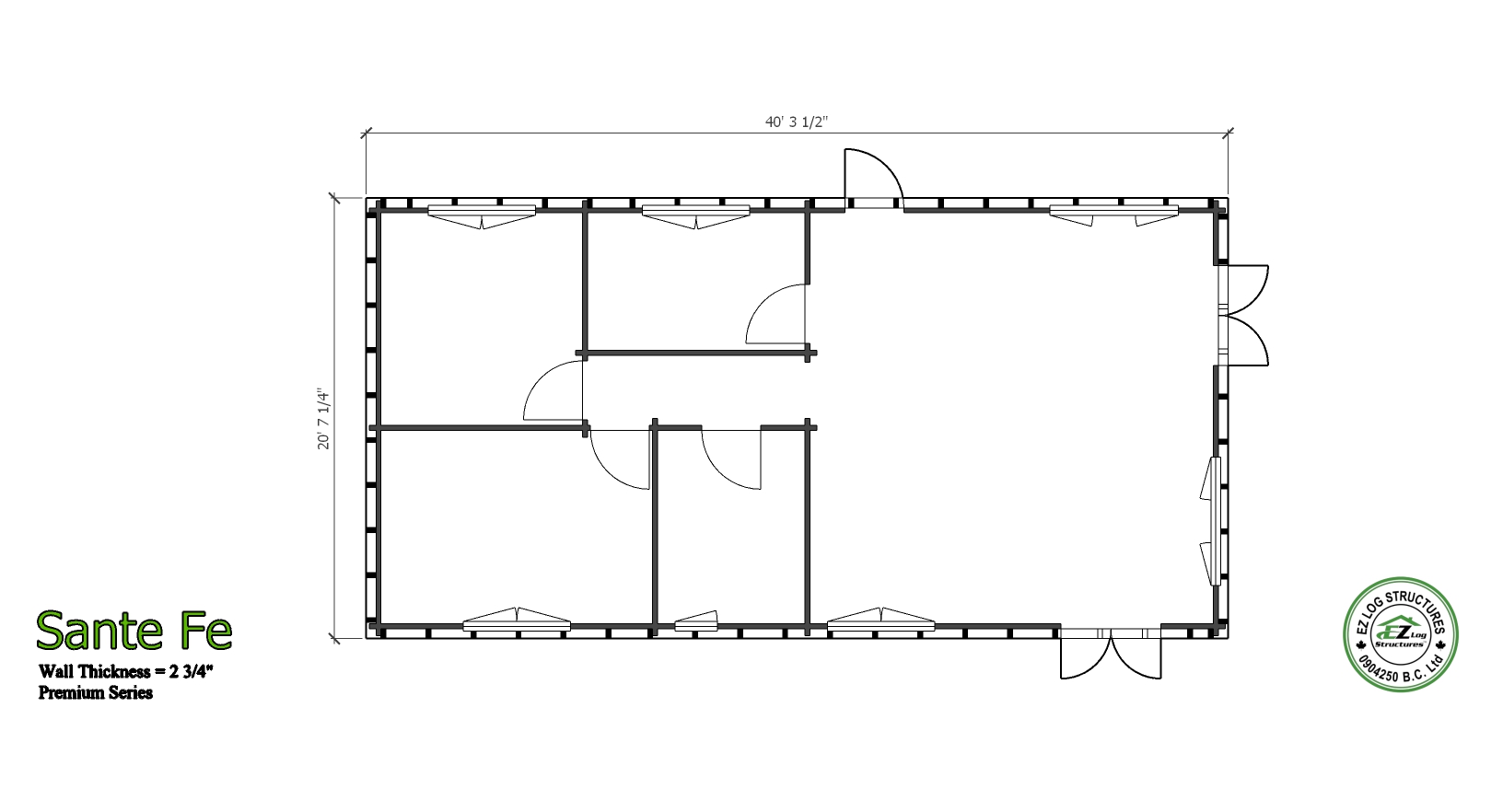

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING



NOTE: Kits include residential grade, double glazed wood windows & doors. Rough openings can be created to accommodate locally purchased windows & doors

Siding Options

(Click here for more information on siding options)

Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims

Option 1) Add 10% for Max semi D-Log wood siding  3/4″ x 5-1/8″ (18mm x 130mm)

Option 2) Add 15%  for Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Option 3) Add 25% for Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm)



Window Options

(Click here for more information on windows)



Option 1) Upgrade all wood windows to triple glazed/Low E/Argon gas filled (21 sash)

Add – $1,995.00 USD



Option 2) Upgrade all wood windows with our exclusive white PVC/Shutter windows with triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)

Add – $ 4,500.00 USD
