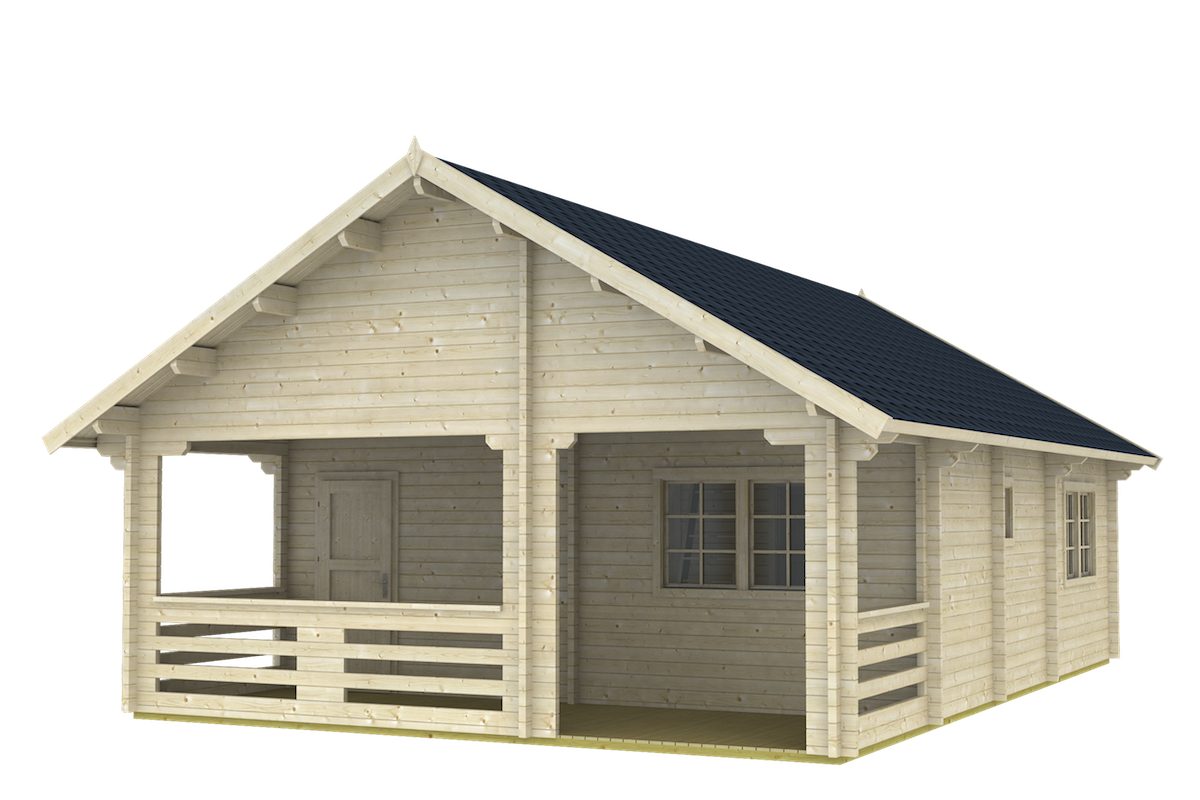

Banff Lofted

$65,000.00


The Banff Lofted offers a harmonious blend of traditional log cabin aesthetics and modern functionality. Crafted from precision-milled, interlocking solid wood logs, this shed is designed for easy assembly, making it an ideal choice for homeowners seeking both style and convenience.


Key Features:

  • Durable Construction: Built with high-quality, interlocking solid wood logs for longevity and strength.

  • Spacious Interior: The 2 bedroom 1 bathroom home offers an efficient use of space.

  • Natural Aesthetics: The timeless log design complements various landscapes and property styles.

  • DIY-Friendly: Comes with pre-cut and numbered logs, ensuring a straightforward assembly process.

Size (sq ft)

618 Square Feet

Size (sq ft)

195 Square Feet

Bedrooms

2

Bathrooms

1

Cabin size

242″x368″

Wall thickness

2 3/4″

Roof boards

3/4″

Roof pitch

7/12 -30D

Wall height

89″

Volume

1478

Ridge height

180″

Attic

82″

Purchase Banff Lofted Cabin

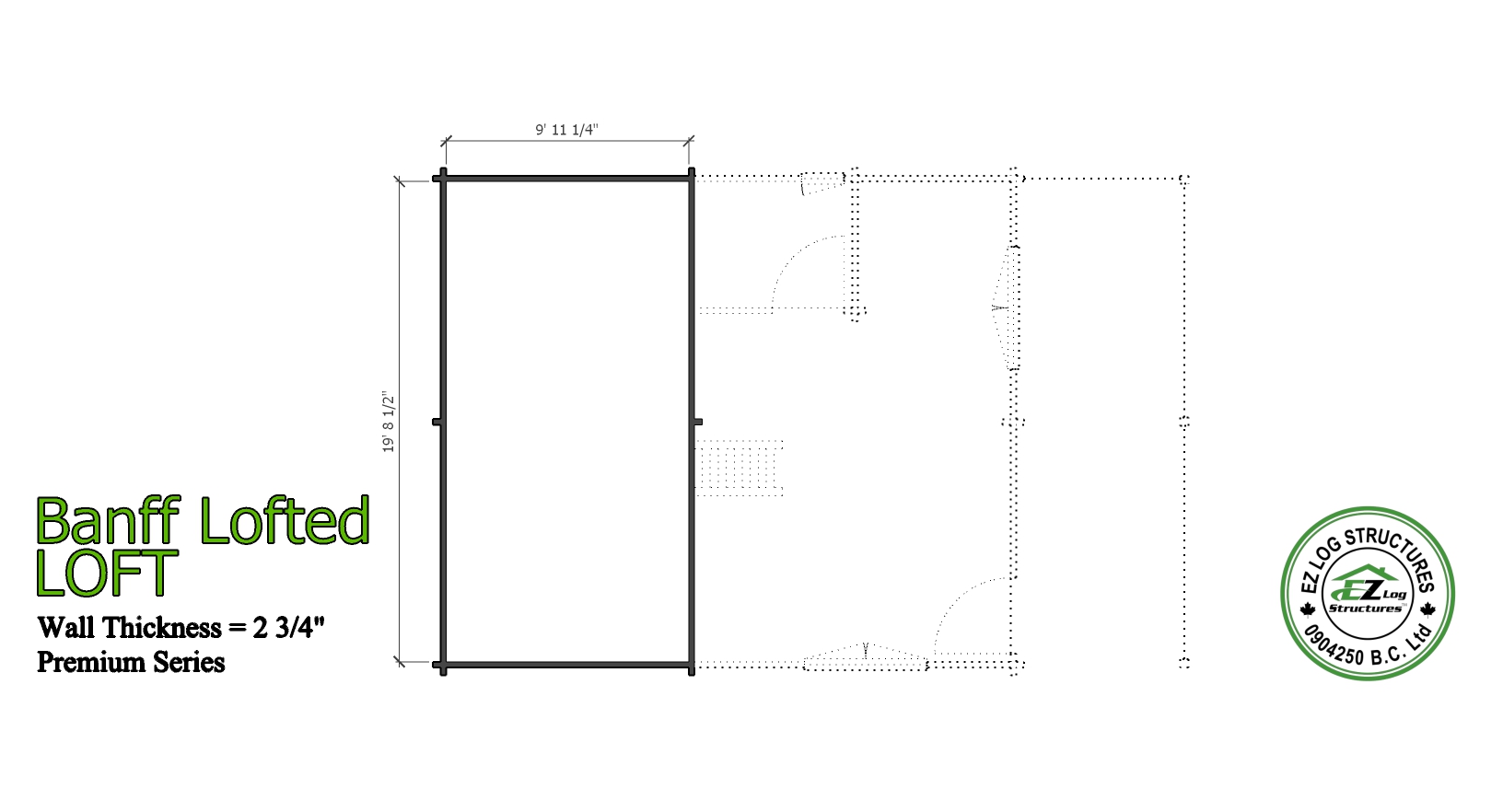

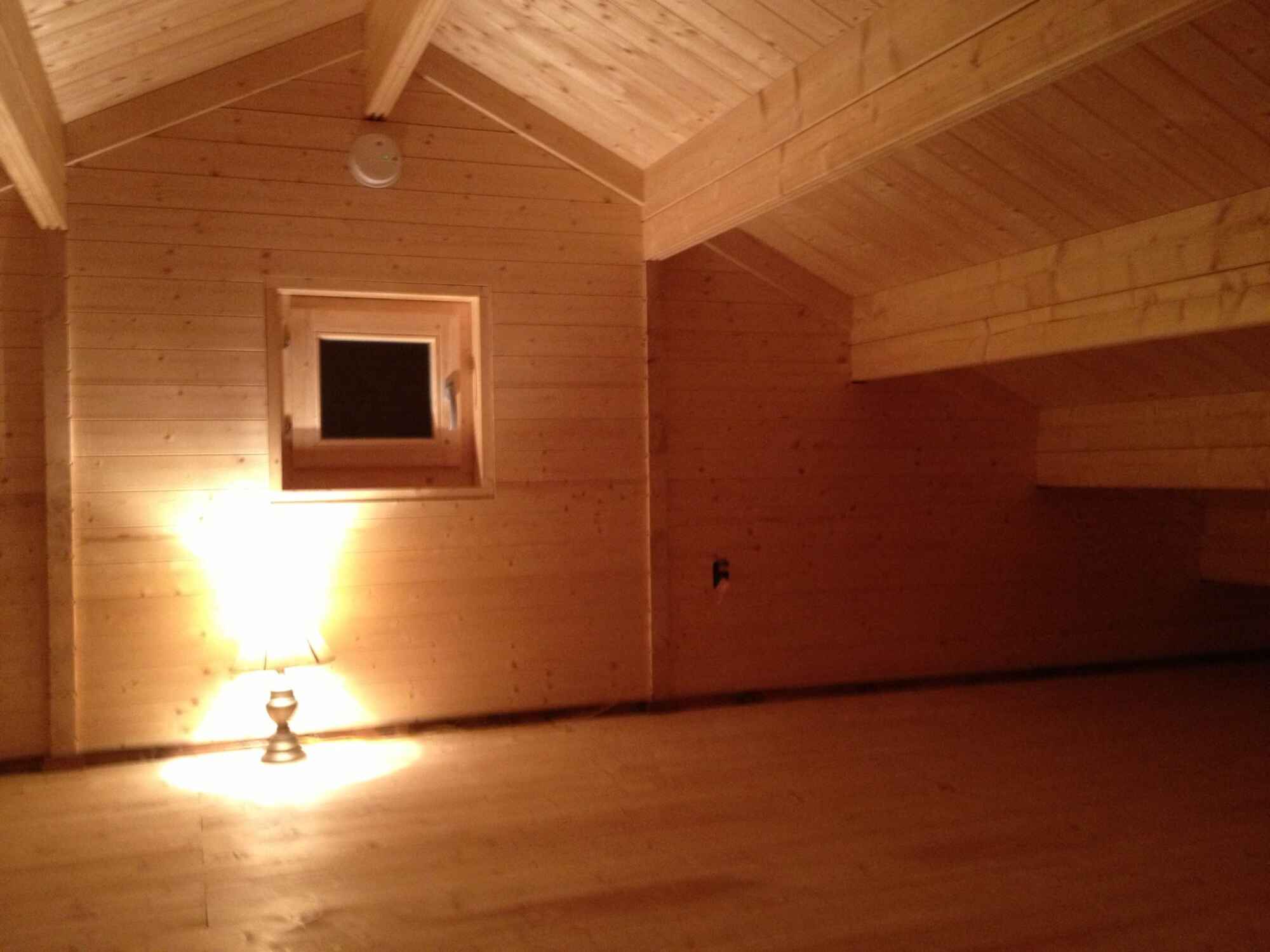

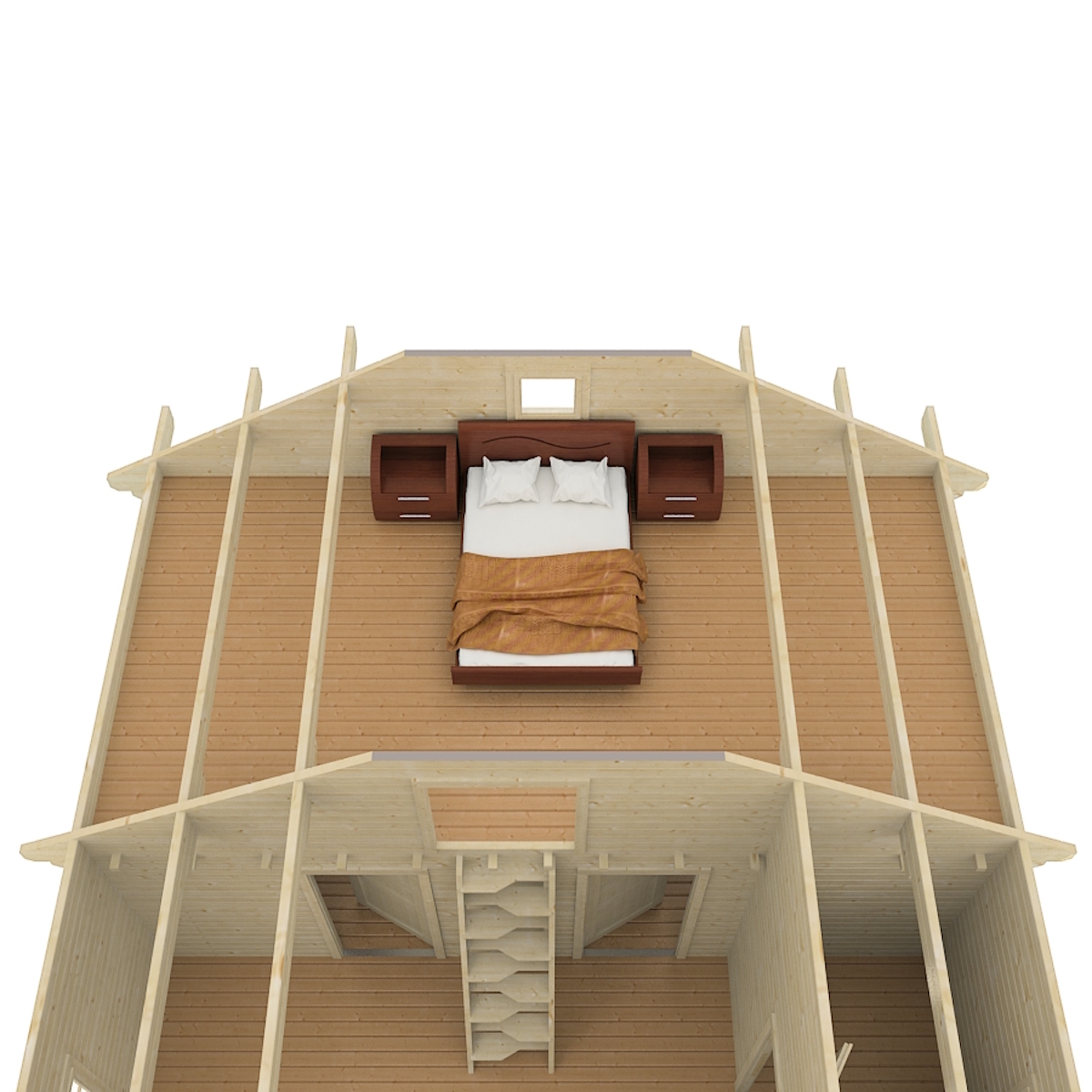

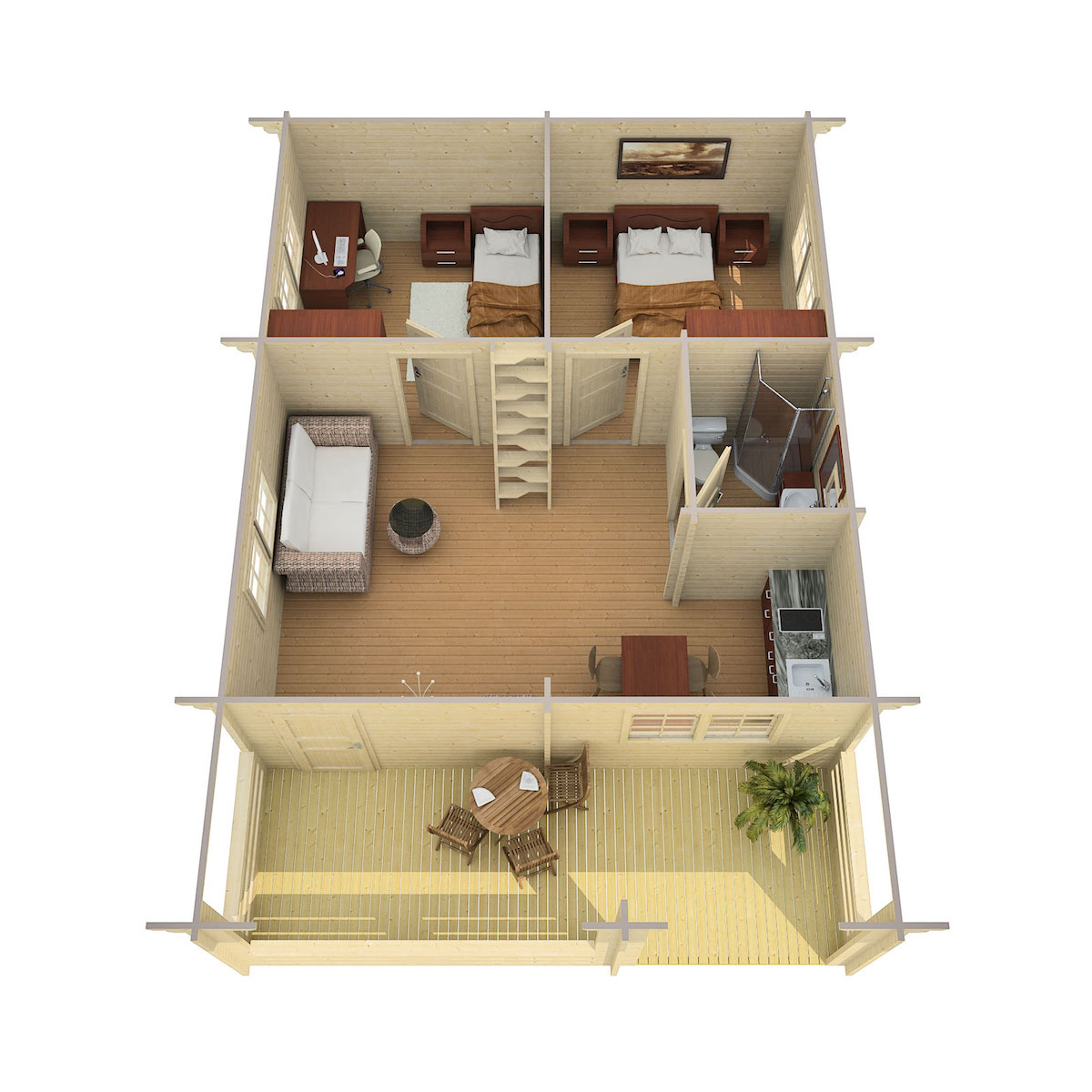

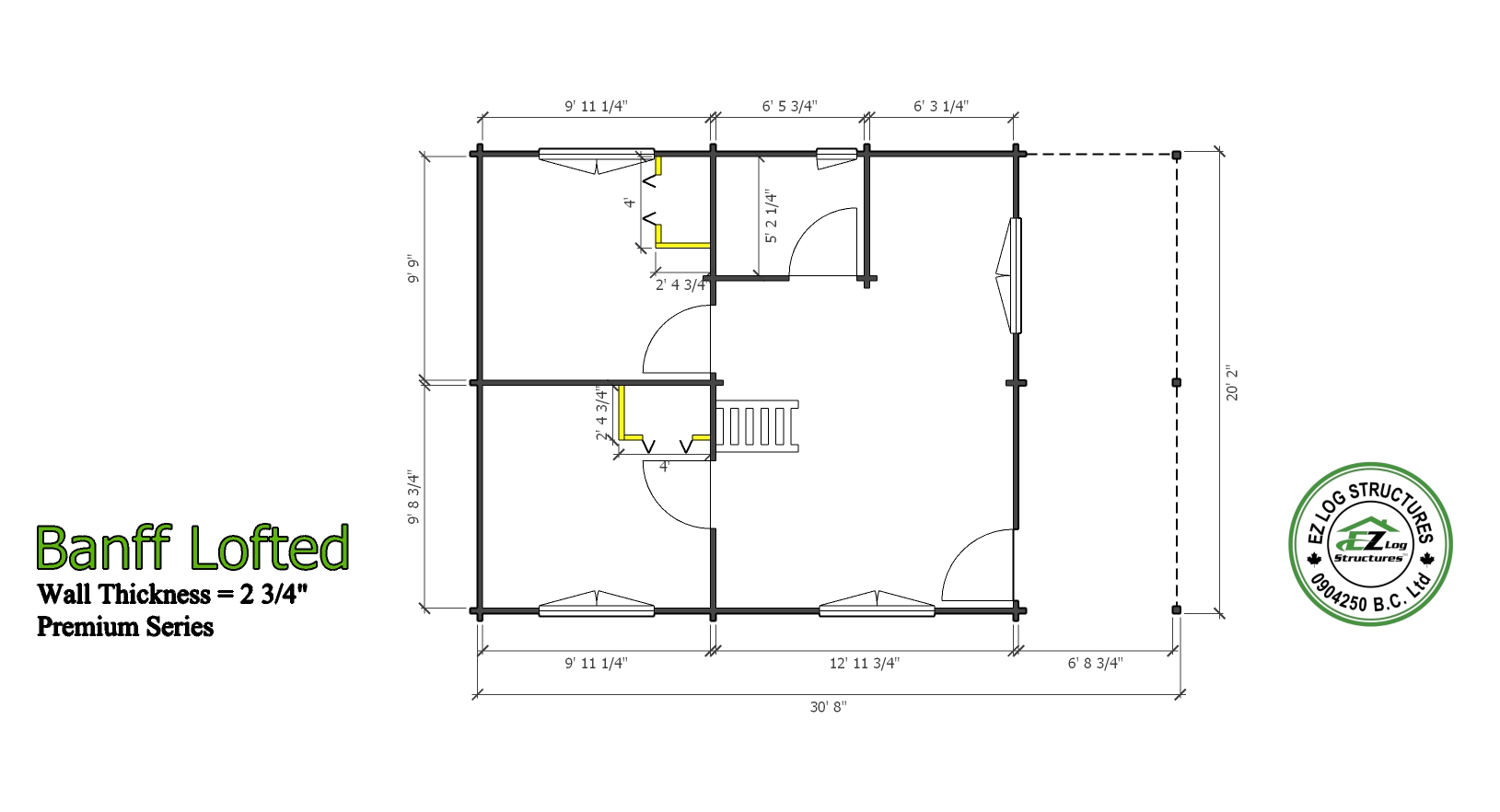

BANFF has a footprint 242″ x 364″ for a total of  612 sq’ on the main level and 195 sq’ loft over the bedrooms. The main cabin area is 475 sq’ and the covered deck area is 134 sq’ . The model is a great small home, cabin getaway or rental opportunity with 2 bedrooms, bathroom and a small usable loft.
Kit includes:
  • ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 7/12 roof pitch (30 degrees)
  • vaulted, cathedral ceilings
  • sidewall height main floor 89″ (2260mm)
  • pre-cut 4″x 8″ (100mm x 200mm) numbered glulam floor beams, spaced 22″ (558mm) or less
  • pre-cut loft floor boards 1-18″ (28mm)

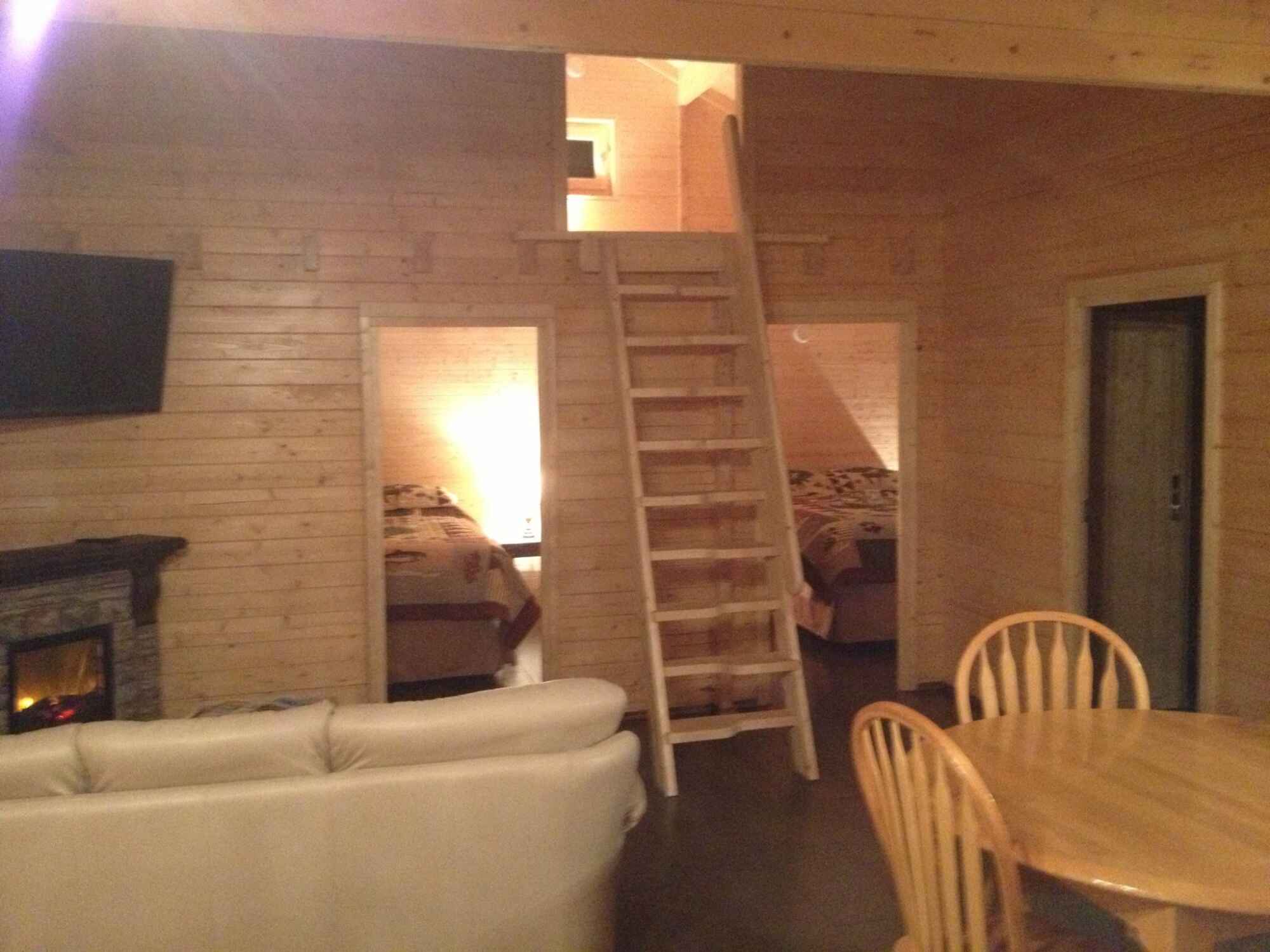

  • loft ladder
  • pre-cut, 4″x 8″ (100mm x 200mm) glulam roof purlins spaced 22″ (558mm) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1478 total sq’ of wall area
  • 921 sq’ of exterior wall surface
  • 140 lineal’ per row
  • 824 sq’ roof area (76 sq’ meters)
  • 3 interior doors 32″x 80″ (812mm x 2040mm)
  • 1 single wide wood windows 21″x 21″ (530mm x 530mm)
  • 3 double wide wood windows 60″x 39″ (1530mm x 990mm)
  • 1 exterior door with multi locking hardware 1/2 glass tempered or solid 36″x 80″ (990mm x 2040mm)
  • NEW 2 – 4′ closet kits for locally purchased bi-fold doors
  • pre-built deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 1,900 – 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

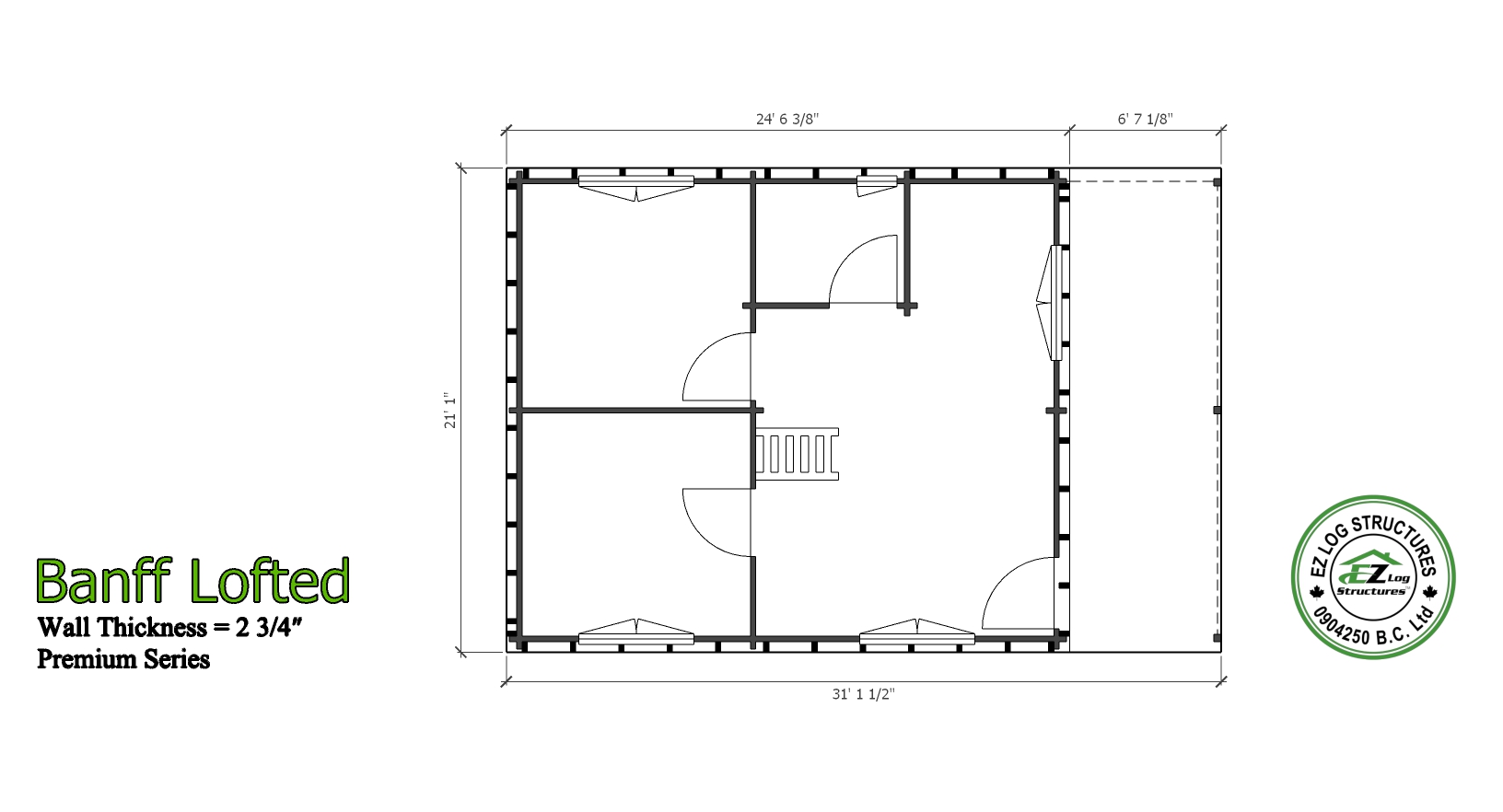

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING



NOTE: Kits include residential grade, double glazed wood windows & doors. Rough openings can be created to accommodate locally purchased windows & doors

Siding Options

(Click here for more information on siding options)

Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims

Option 1) Add 10% for Max semi D-Log wood siding  3/4″ x 5-1/8″ (18mm x 130mm)

Option 2) Add 15%  for Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Option 3) Add 25% for Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm)



Window Options

(Click here for more information on windows)



Option 1) Upgrade all wood windows to triple glazed/Low E/Argon gas filled (21 sash)

Add – $1,088.00 USD



Option 2) Upgrade all wood windows with our exclusive white PVC/Shutter windows with triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)

Add – $ 2,448.00 US
